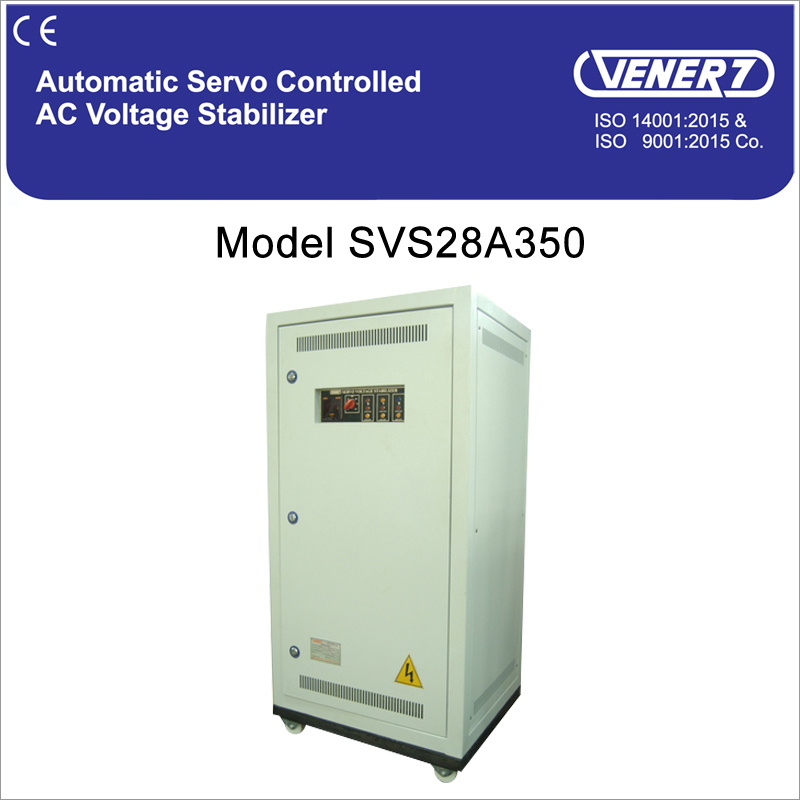

50 kVA Air Cooled Servo Voltage Stabilizer
175300 INR/Number
Product Details:
- Power Rating 50 kVA, 3 Phase, 4 Wire
- Input Voltage 280V to 460V Volt (V)
- Output Voltage 400V +/- 1% Volt (V)
- Efficiency 98-99%
- Frequency (MHz) 47-63 Hertz (HZ)
- Phase Three Phase
- Warranty 1 Year
- Click to View more
X
50 kVA Air Cooled Servo Voltage Stabilizer Price And Quantity
- 175300 INR/Number
- 1 Piece
50 kVA Air Cooled Servo Voltage Stabilizer Product Specifications
- Nil
- L 700 x D 600 x H 1500 Millimeter (mm)
- Three Phase
- -20 to 50 Celsius (oC)
- 98-99%
- 280V to 460V Volt (V)
- 50 kVA, 3 Phase, 4 Wire
- 47-63 Hertz (HZ)
- 400V +/- 1% Volt (V)
- 401 Kilograms (kg)
- 1 Year
- IP30
50 kVA Air Cooled Servo Voltage Stabilizer Trade Information
- Delhi
- Per Day
- 15 Days
- Wooden Pallet / Wooden Box
- Middle East, Africa, Asia
- All India
- IS 9815, ISO 9001-2015, ISO 14001-2015 CE Conformity EN61558-1:2005+A1:2009
Product Description
Technical Specifications - Model SVS28A350
| Rating | : | 50 kVA, 3 Phase, 4 Wire |
| Output Current | : | 72 Amps per phase |
| Input Voltage Range | : | 240V to 460V, 47Hz to 63Hz, 4 Wire |
| Output Voltage | : | 400V +/- 1% |
| Input / Output Termination | : | On Copper Bus Bar |
| Correction Speed | : | Faster than 23V per sec. |
| Suitability | : | Suitable for all power factor loads |
| Response Time | : | Less than 10ms |
| Cooling | : | Natural air Cooled |
| Installation | : | Indoor type |
| Degree of Protection | : | IP-30 |
| No Load Loss | : | Less than 0.4% |
| Efficiency | : | 98-99% |
| Wave form Distortion | : | Nil |
| Duty Cycle | : | Continuous 24x7 |
| Winding & Wiring Material | : | Copper EC grade (99.9% Pure) |
| Drive | : | Direct AC drive for fastest voltage correction and durability |
| Technology | : | Torridly wound Variable Auto Transformer for linear control and greater efficiency. |
| Controls | : | All the three phases controlled individually for better voltage and load management. |
| Size (in mm) & Weight | : | L 700 x D 600 x H 1500 & 401 Kg. |
| Applicable Standard | : | IS 9815 |
| : | ISO 9001-2015 , ISO 14001-2015 | |
| International Marking | : | CE Conformity EN61558-1:2005+A1:2009 |
Optional Protections
- Overload Cut-Off and Short Circuit Protection.
- Low/High Voltage (out of input range) Alarm or Cut-Off.
- Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
- Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
- "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
- Output voltage adjustable 6% of set voltage from front panel.
- Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
- Provision for Auto / Manual control from the front panel.
- Wide ambient temperature operation from -20C to 50C.
- Due to new innovations & improvements the technical specifications are subject to change.
