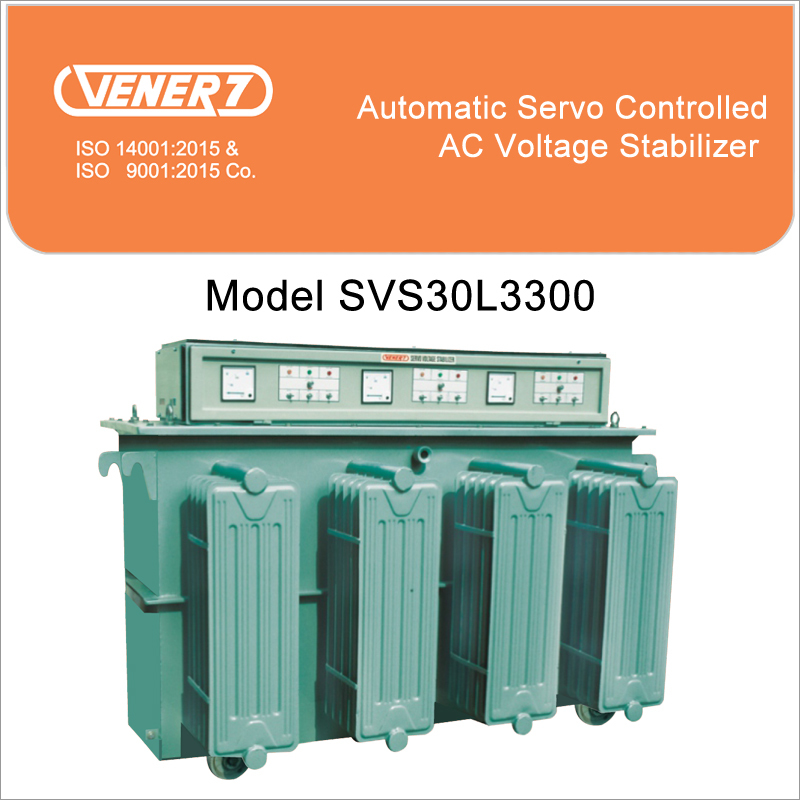

300 kVA Oil Cooled Servo Voltage Stabilizer
571500 INR/Piece
Product Details:
- Power Rating 300 kVA
- Input Voltage 300 - 460V Volt (V)
- Output Voltage 400V +/- 1% Volt (V)
- Efficiency 98%
- Frequency (MHz) 47Hz to 63Hz Hertz (HZ)
- Phase Three Phase
- Warranty 3 Year
- Click to View more
X
300 kVA Oil Cooled Servo Voltage Stabilizer Price And Quantity
- 571500 INR/Piece
- 1 Piece
300 kVA Oil Cooled Servo Voltage Stabilizer Product Specifications
- 3 Year
- AC
- IP-30
- 300 - 460V Volt (V)
- L 1830 x D 1320 x H 1270 Millimeter (mm)
- 98%
- 1657 Kilograms (kg)
- Three Phase
- 300 kVA
- 400V +/- 1% Volt (V)
- Stabilizer
- 47Hz to 63Hz Hertz (HZ)
300 kVA Oil Cooled Servo Voltage Stabilizer Trade Information
- Delhi
- 15 Days
- Wooden Pallet
- Africa, Middle East, Asia
- All India
- IS 9815, ISO 9001-2015, ISO 14001-2015 CE Conformity EN61558-1:2005+A1:2009
Product Description
Technical Specifications - Model SVS30L3300| Rating | : | 300 kVA, 3 Phase, 4 Wire |
| Output Current | : | 433 Amps per phase |
| Input Voltage Range | : | 300V to 460V, 47Hz to 63Hz, 4 Wire |
| Output Voltage | : | 400V +/- 1% |
| Duty Cycle | : | Continuous 24x7 |
| Waveform Distortion | : | Nil |
| Response Time | : | Less than 10ms |
| Suitability | : | Suitable for all power factor loads |
| Cooling | : | Natural Oil Cooled |
| Class of Insulation | : | A Class |
| Breakdown Strength & IR | : | 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC |
| Additional Facility | : | Manual Operation |
| Installation | : | Indoor type (Out Door Type Also Available) |
| Degree of Protection | : | IP-30 |
| No Load Loss | : | Less than 0.4% |
| Efficiency | : | 98-99% |
| Ambient Temperature | : | -20 deg C to +50 deg c |
| Transformer Oil | : | New Insulating Transformer Oil ISI 335 Marked |
| Size (in mm) & Weight | : | L 1830 x D 1320 x H 1270 & 1657 Kg. |
| Input / Output Termination | : | On Copper Bus Bar |
| Winding & Wiring Material | : | Copper EC grade (99.9% Pure) |
| Technology | : | Torridly wound Variable Auto Transformer for linear control and greater efficiency. |
| Drive | : | Direct AC drive for fastest voltage correction and durability |
| Controls | : | All the three phases controlled individually for better voltage and load management. |
| Applicable Standard | : | IS 9815 , ISO 9001-2015 , ISO 14001-2015 |
| International Marking | : | CE Conformity EN61558-1:2005+A1:2009 |
Optional Protections
- Overload Cut-Off and Short Circuit Protection.
- Low/High Voltage (out of input range) Alarm or Cut-Off.
- Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
- Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
- "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
- Output voltage adjustable 6% of set voltage from front panel.
- Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
- Provision for Auto / Manual control from the front panel.
- Wide ambient temperature operation from -20 deg C to 50 deg C.
- Due to new innovations & improvements the technical specifications are subject to change.
