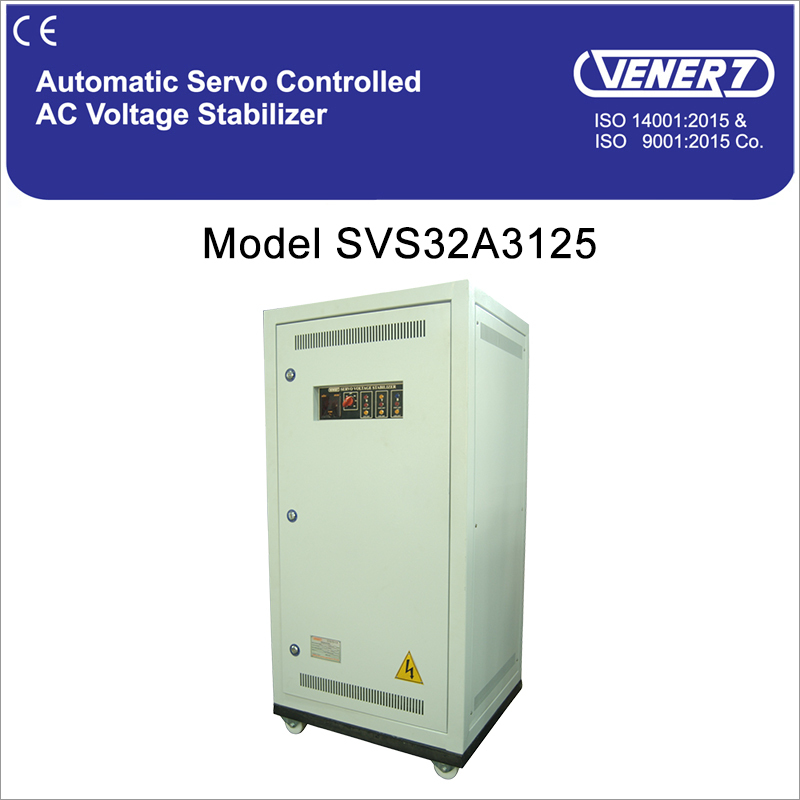

125 kVA Air Cooled Servo Voltage Stabilizer

Product Description

Technical Specifications - Model SVS32A3125

• Rating: 125 KVA, 3 Phase in/3 Phase Out, 4 Wire

• Input Voltage Range: 320V to 460V, L to L (185V-265V L to N), 47Hz to 63Hz, 4 Wire

• Output Voltage: 380/400/415V +/-1%

• Output Current: 189/181/174 Amps per phase

• Duty Cyde: Continuous 24x7

• Wave form Distortion: Nil

• Response Time: Less than 10ms

• Suitability: Suitable for all power factor loads

• Cooling: Natural air Cooled

• Additional Facility: Manual Operation

• Operating Temperature: 0-55 Degree C

• Breakdown Strength & IR: 1500V AC for 2 minutes and 50 Mega Ohms 500 V DC

• Class of Insulation: F/H

• Installation: Indoor type

• Degree of Protection: IP-30

• No Load Loss: Less than 0.4%

• Efficiency: 98-99%

• Correction Speed: Faster than 23V per sec.

• Input/Output Termination: Copper Bus Bar.

• Winding & Wiring Material: Copper EC grade (99.9% Pure)

• Technology: Tormidly wound Variable Auto Transformer for linear control and greater efficiency.

• Drive: Direct AC drive for fastest voltage Controls correction and durability

• Control: All the three phases controlled individually for better voltage and Isad management.

• Applicable Standard: IS 9815, ISO 9001-2015, ISO 14001-2015

• International Marking: CE Conformity EN61558-1:2005+A1:2009

Optional Protections

• Overload Cut-Off and Short Circuit Protection.

• Low/High Voltage (out of input range) Alarm and/or Cut-Off.

• *Phase Missing/Phase Revensai Alarm and/or Cut-Off.

Optional Features

• Digital Multifunction Meter.

• Manual Bypass & Auto Phase Correction

Salient Features

• Output voltage adjustable ± 6% of set voltage from front panel.

• Meters on front panel for easy monitoring of input and output voltage along with limit indicators.

• Provision for Auto/Manual control from the front panel.
