Input Voltage Range 240 To 460 Volts

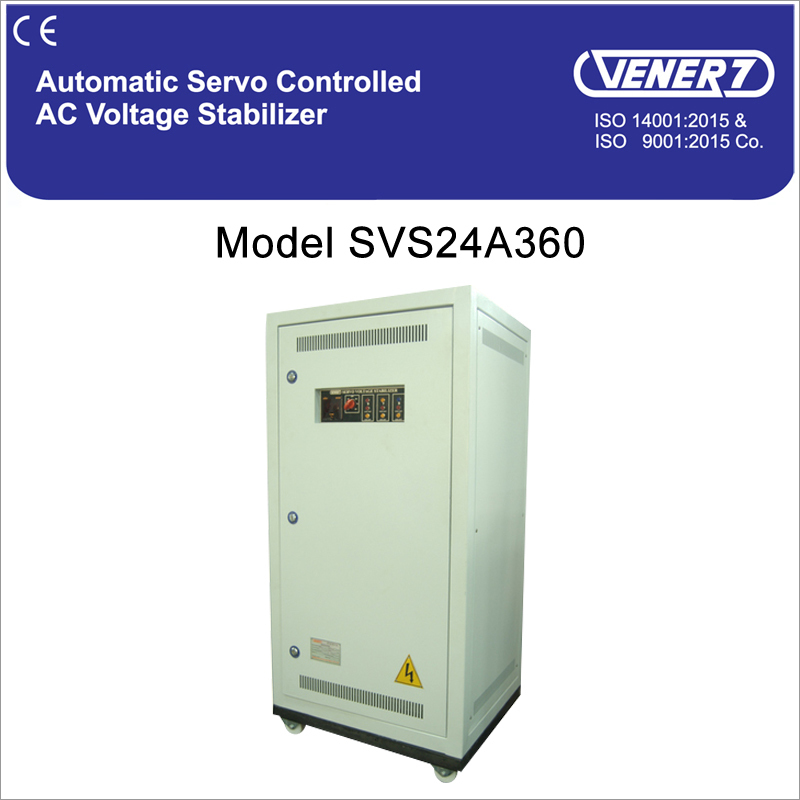

60kVA 87 Amps Automatic Servo Controlled Air Cooled Voltage Stabilizer

Features

• Rating : 60 kVA, 3 Phase, 4 Wire
• Output Current : 87 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Input / Output Termination : On Copper Bus Bar

50kVA Three Phase Automatic Servo Controlled Air Cooled Voltage Stabilizer

Features

• Rating : 50 kVA, 3 Phase, 4 Wire
• Output Current : 72 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Duty Cycle : Continuous 24x7

40kVA 240V to 460V Automatic Servo Controlled Air Cooled Voltage Stabilizer

Features

• Rating : 40 kVA, 3 Phase, 4 Wire
• Output Current : 58 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Duty Cycle : Continuous 24x7

30kVA 240V to 460V Automatic Servo Controlled Air Cooled Voltage Stabilizer

Features

• Rating : 30 kVA, 3 Phase, 4 Wire
• Output Current : 43 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Duty Cycle : Continuous 24x7

10kVA 14 Amps Automatic Servo Controlled Air Cooled Voltage Stabilizer

25kVA Air Cooled Voltage Stabilizer

Features

• Rating : 25 kVA, 3 Phase, 4 Wire
• Output Current : 36 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Duty Cycle : Continuous 24x7

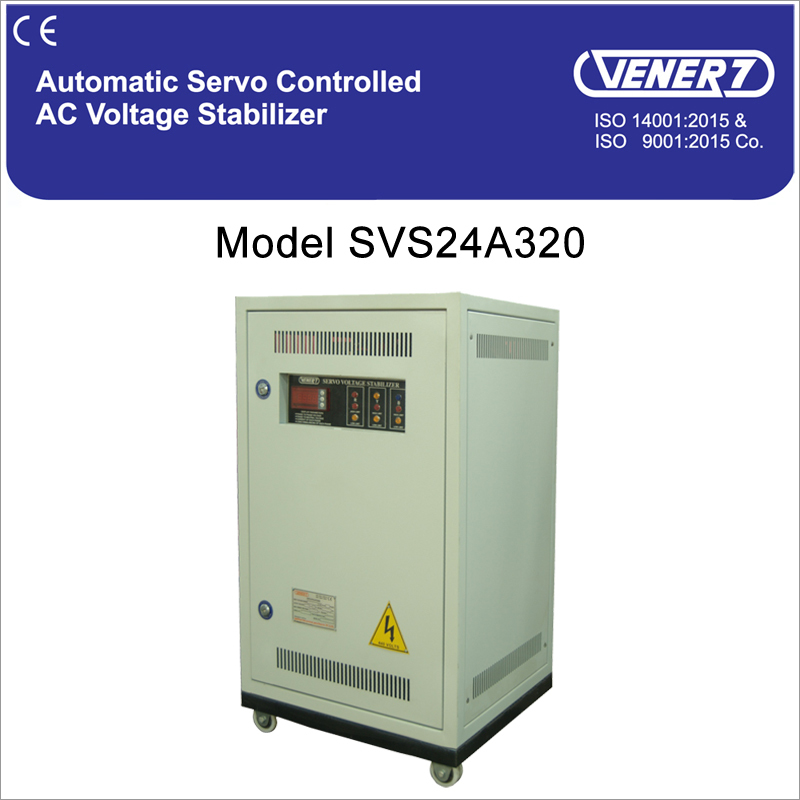

20kVA Air Cooled Voltage Stabilizer

Features

• Rating : 20 kVA, 3 Phase, 4 Wire
• Output Current : 29 Amps per phase
• Input Voltage Range : 240V to 460V, 47Hz to 63Hz, 4 Wire
• Output Voltage : 400V +/- 1%
• Duty Cycle : Continuous 24x7
