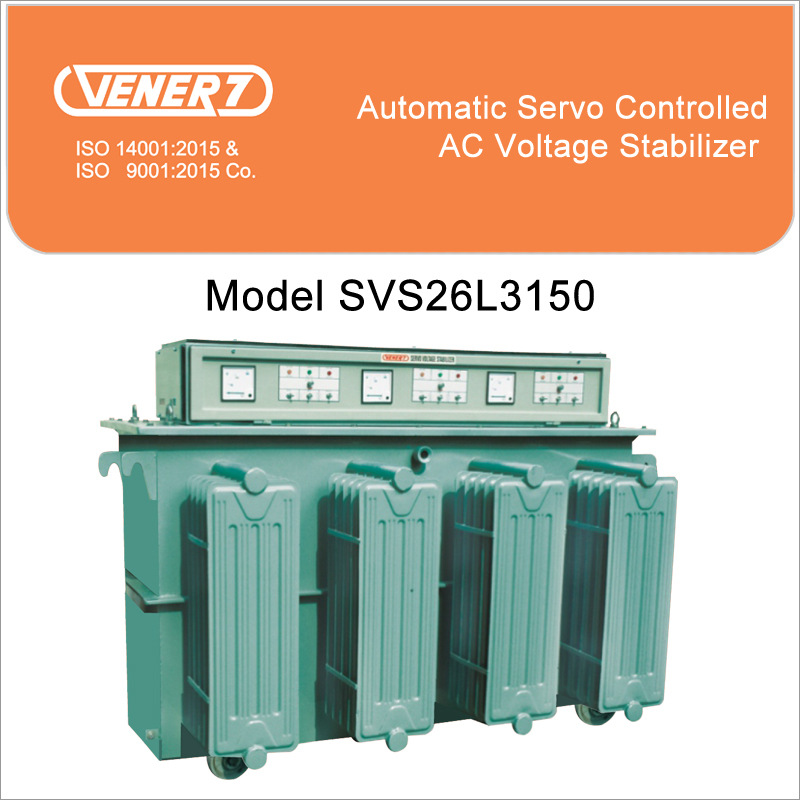

150 kVA Oil Cooled Servo Voltage Stabilizer

Get a Price/Quote

Product Details:

Power Rating 150 kVA, 3 Phase, 4 Wire
Input Voltage 260 to 460 Volt (V)
Output Voltage 400V +/- 1% Volt (V)
Efficiency 98-99%
Frequency (MHz) 47-63 Hertz (HZ)
Phase Three Phase
Warranty 3 Year
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

150 kVA Oil Cooled Servo Voltage Stabilizer Price And Quantity

Minimum Order Quantity 1 Piece

150 kVA Oil Cooled Servo Voltage Stabilizer Product Specifications

Power Rating 150 kVA, 3 Phase, 4 Wire
Dimension (L*W*H) L 2130 x D 1170 x H 1170 Millimeter (mm)
Ambient Temperature -20 deg C to +50 deg c Celsius (oC)
Frequency (MHz) 47-63 Hertz (HZ)
Output Voltage 400V +/- 1% Volt (V)
Waveform Distortion Nil
Input Voltage 260 to 460 Volt (V)
Phase Three Phase
Warranty 3 Year
Efficiency 98-99%
Weight 1362 Kilograms (kg)
IP Rating IP-30

150 kVA Oil Cooled Servo Voltage Stabilizer Trade Information

FOB Port Delhi
Payment Terms Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cheque
Packaging Details Wooden Pallet
Main Domestic Market All India
Certifications IS 9815, ISO 9001-2015, ISO 14001-2015 CE Conformity EN61558-1:2005+A1:2009

Product Description

An oil-cooled voltage stabilizer is a type of electrical device used to maintain a stable voltage output despite fluctuations in the input voltage. Voltage stabilizers are crucial in areas where the power supply is inconsistent, as they protect electronic equipment from damage caused by overvoltage or undervoltage conditions.

Here's an overview of how an oil-cooled voltage stabilizer works:

1. Transformer Core: The stabilizer typically contains a transformer core made of laminated iron sheets. This core is responsible for transforming the incoming voltage to the desired output voltage.

2. Auto-transformer: Many voltage stabilizers use an auto-transformer configuration, which means the primary and secondary windings share a common portion. This design helps in regulating the output voltage.

3. Buck-Boost Mechanism: The auto-transformer adjusts the voltage by either boosting (increasing) or bucking (decreasing) the voltage level, depending on the input conditions.

4. Oil Cooling System: To dissipate the heat generated during the voltage regulation process, the stabilizer is immersed in a special type of oil. The oil serves as a coolant and also provides insulation. The cooling process is essential to maintain the efficient operation and longevity of the stabilizer.

5. Temperature Control: Some oil-cooled voltage stabilizers come with a temperature control system to ensure that the oil temperature stays within a safe range. This might involve the use of fans, radiators, or other cooling mechanisms.

6. Monitoring and Control Unit: Modern voltage stabilizers often include a monitoring and control unit that continuously monitors the input voltage. If any deviations are detected, the control unit adjusts the auto-transformer to maintain a stable output.

7. Protection Mechanisms: Voltage stabilizers typically incorporate protection features such as surge protection, overload protection, and short-circuit protection to safeguard connected equipment.

Oil Cooled Voltage Stabilizer Specifications:

1. Model Number : SVS26L3150

2. Rating : 150 kVA, 3 Phase, 4 Wire

3. Output Current : 216 Amps per phase

4. Input Voltage Range : 260V to 460V, 47Hz to 63Hz, 4 Wire

5. Output Voltage : 400V +/- 1%

6. Duty Cycle : Continuous 24x7

7. Waveform Distortion : Nil

8. Response Time : Less than 10ms

9. Suitability : Suitable for all power factor loads

10. Cooling : Natural Oil Cooled

11. Class of Insulation : A Class

12. Breakdown Strength & IR : 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC

13. Additional Facility : Manual Operation

14. Installation : Indoor type (Out Door Type Also Available

15. Degree of Protection : IP-30

16. No Load Loss : Less than 0.4%

17. Efficiency : 98-99%

18. Ambient Temperature : -20 degree centigrade to +50 degree centigrade

19. Transformer Oil : New Insulating Transformer Oil ISI 335 Marked

20. Size (in mm) & Weight : L 2130 x D 1170 x H 1170 & 1362 Kg.

21. Input / Output Termination : On Copper Bus Bar

22. Winding & Wiring Material : Copper EC grade (99.9% Pure)

23. Technology : Torridly wound Variable Auto Transformer for linear control and greater efficiency.

24. Drive : Direct AC drive for fastest voltage correction and durability

25. Controls : All the three phases controlled individually for better voltage and load management.

26. Applicable Standard : IS 9815 , ISO 9001-2015 , ISO 14001-2015

27. International Marking : CE Conformity EN61558-1:2005+A1:2009

Optional Protections:

1. Overload Cut-Off and Short Circuit Protection.

2. Low/High Voltage (out of input range) Alarm or Cut-Off.

3. Phase Missing / Phase Reversal Alarm or Cut-Off.

Optional Features:

Digital Multifunction Meter. Manual Bypass & Auto Phase Correction

Salient Features:

1. "IC" based solid-state, relay less, plug in control cards for easy online serviceability.

2. Output voltage adjustable 6% of set voltage from front panel.

3. Meters on front panel for easy monitoring of input and output voltage along with limit indicators.

4. Provision for Auto / Manual control from the front panel.

5. Wide ambient temperature operation from -20 deg C to 50 deg C.

6. Due to new innovations & improvements the technical specifications are subject to change.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Input Voltage Range 260 to 460 Volts ' category

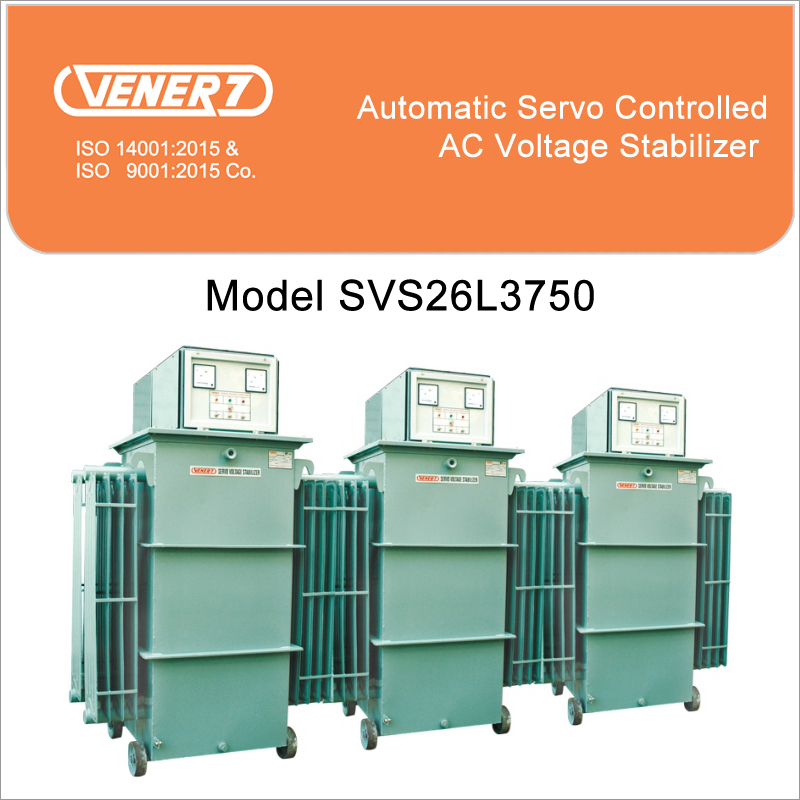

750 kVA Oil Cooled Servo Voltage Stabilizer Minimum Order Quantity : 1 Waveform Distortion : Nil Input Voltage : 260 to 460 Volt (V) IP Rating : IP30 Warranty : 3 Year Phase : Three Phase Weight : 6335 Kilograms (kg) Efficiency : 9899% Dimension (L*W*H) : L 3730 x D 1420 x H 1905 Millimeter (mm) Ambient Temperature : 20 deg C to +50 deg c Celsius (oC) Power Rating : 750 kVA, 3 Phase, 4 Wire Output Voltage : 400V +/ 1% Volt (V) Frequency (MHz) : 4763 Hertz (HZ) Insulation Resistance : A Class
