Input Voltage Range 340 To 460 Volts

1500kVA  Oil Cooled Voltage Stabilizer
close
1500kVA Oil Cooled Voltage Stabilizer
SVS34L31500

Features

  • "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
  • Output voltage adjustable + 6% of set voltage from front panel.

  • Meters on front panel for easy monitoring of input and output voltage along with limit indicators.

  • Provision for Auto / Manual control from the front panel.

  • Wide ambient temperature operation from -20oC to 50oC.
30kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
30kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L330
Features:

  • Rating: 30 kVA, 3 Phase, 4 Wire
  • Output Current: 43 Amps per phase
  • Input Voltage Range: 340V to 460V, 47Hz to 63Hz, 4 Wire
  • Output Voltage: 400V +/- 1%
  • Duty Cycle: Continuous 24x7
40kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
40kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L340
Features:

  • Rating: 40 kVA, 3 Phase, 4 Wire
  • Output Current: 58 Amps per phase
  • Breakdown Strength & IR: 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC
  • Additional Facility: Manual Operation
  • Installation: Indoor type (Out Door Type Also Available)
50kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
50kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L350
Features:

  • Rating: 50 kVA, 3 Phase, 4 Wire
  • Output Current: 72 Amps per phase
  • No Load Loss: Less than 0.4%
  • Efficiency: 98-99%
  • Ambient Temperature: -20° C to +50°

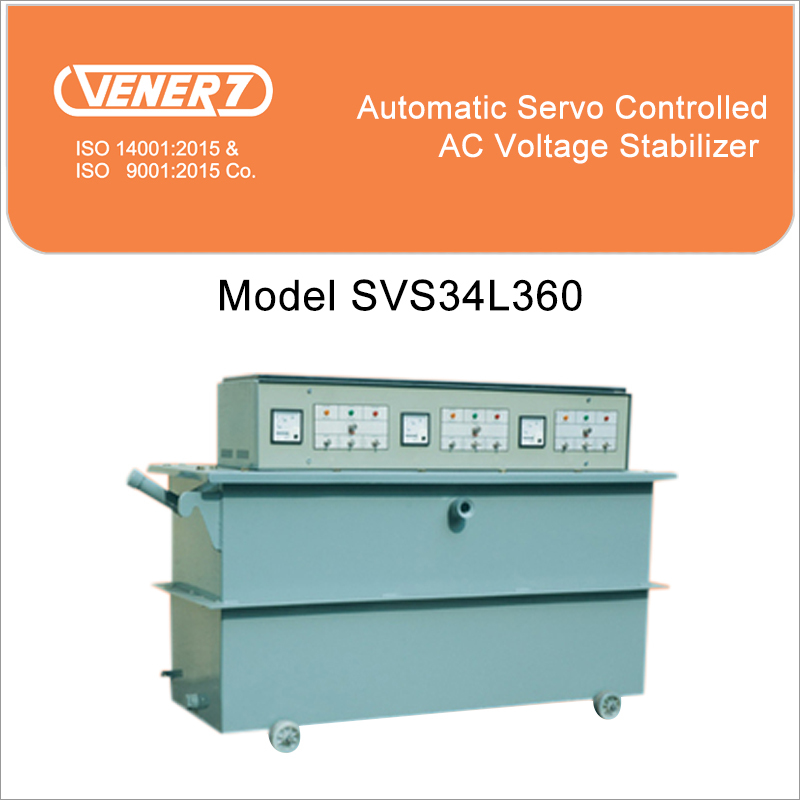

60kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
60kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L360
Features:

  • Rating: 60 kVA, 3 Phase, 4 Wire
  • Output Current: 86 Amps per phase
  • Size (in mm): L 1320 x D 580 x H 790
  • Input/Output Termination: On Copper Bus Bar
  • Winding & Wiring Material: Copper EC grade (99.9% Pure)
75kVA Servo Controlled OC Voltage Stabilizer
close
75kVA Servo Controlled OC Voltage Stabilizer
SVS34L375
Features:

  • Rating: 75 kVA, 3 Phase, 4 Wire
  • Output Current: 108 Amps per phase
  • Size (in mm): L 1320 x D 580 x H 860
  • Weight: 410 Kg.
  • Efficiency: 98-99%
90kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
90kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L390
Features:

  • Rating: 90 kVA, 3 Phase, 4 Wire
  • Output Current: 130 Amps per phase
  • Input/Output Termination: On Copper Bus Bar
  • Winding & Wiring Material: Copper EC grade (99.9% Pure)
  • Technology: Torridly wound Variable Auto Transformer for linear control and greater efficiency.
100kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
100kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3100

Features:

  • Rating: 100 kVA, 3 Phase, 4 Wire
  • Output Current: 144 Amps per phase
  • Efficiency: 98-99%
  • Ambient Temperature: -20° C to +50°
  • Transformer Oil: New Insulating Transformer Oil ISI 335 Marked

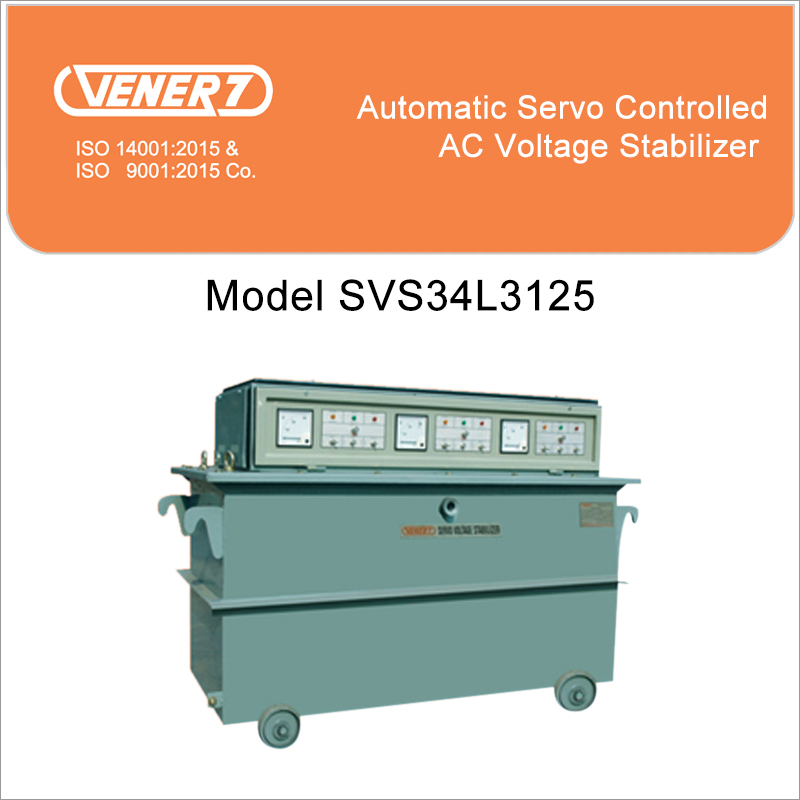

125 kVA Servo Voltage Stabilizer
close
125 kVA Servo Voltage Stabilizer
SVS34L3125
Features:

  • Rating: 125 kVA, 3 Phase, 4 Wire
  • Output Current: 180 Amps per phase
  • Response Time: Less than 10ms
  • Suitability: Suitable for all power factor loads
  • Cooling: Natural Oil Cooled
150kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
150kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3150
Features:

  • Rating: 150 kVA, 3 Phase, 4 Wire
  • Output Current: 217 Amps per phase
  • Breakdown Strength & IR: 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC
  • Additional Facility: Manual Operation
  • Installation: Indoor type (Out Door Type Also Available)
200kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
200kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3200
Features:

  • Rating: 200 kVA, 3 Phase, 4 Wire
  • Output Current: 289 Amps per phase
  • Response Time: Less than 10ms
  • Suitability: Suitable for all power factor loads
  • Cooling: Natural Oil Cooled

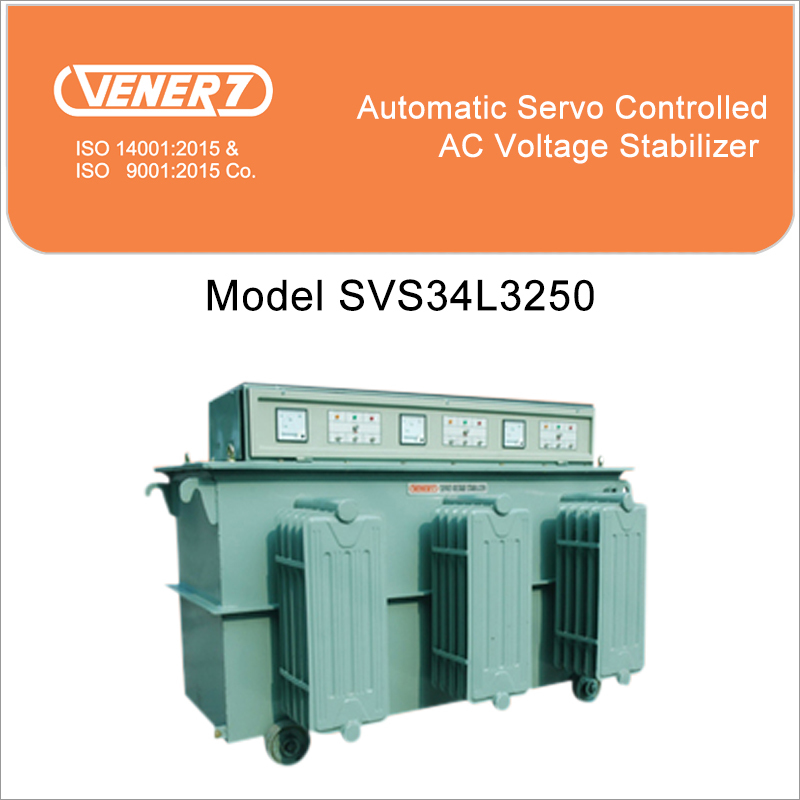

250 kVA Servo Voltage Stabilizer
close
250 kVA Servo Voltage Stabilizer
SVS34L3250
Features:

  • Rating: 250 kVA, 3 Phase, 4 Wire
  • Output Current: 361 Amps per phase
  • Input/Output Termination: On Copper Bus Bar
  • Winding & Wiring Material: Copper EC grade (99.9% Pure)
  • Efficiency: 98-99%
300kVA Servo Voltage Stabilizer Oil Cooled
close
300kVA Servo Voltage Stabilizer Oil Cooled
SVS34L3300
Features:

  • Rating: 300 kVA, 3 Phase, 4 Wire
  • Output Current: 433 Amps per phase
  • No Load Loss: Less than 0.4%
  • Efficiency: 98-99%
  • Ambient Temperature: -20° C to +50°
400kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
400kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3400
Features:

  • Rating: 400 kVA, 3 Phase, 4 Wire
  • Output Current: 577 Amps per phase
  • Additional Facility: Manual Operation
  • Input/Output Termination: On Copper Bus Bar
  • Winding & Wiring Material: Copper EC grade (99.9% Pure)
500kVA Servo Voltage Stabilizer Oil Cooled
close
500kVA Servo Voltage Stabilizer Oil Cooled
SVS34L3500
Features:

  • Rating: 500 kVA, 3 Phase, 4 Wire
  • Output Current: 722 Amps per phase
  • Duty Cycle: Continuous 24x7
  • Waveform Distortion: Nil
  • Response Time: Less than 10ms
600kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
600kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3600
Features:

  • Rating: 600 kVA, 3 Phase, 4 Wire
  • Output Current: 866 Amps per phase
  • Input Voltage Range: 340V to 460V, 47Hz to 63Hz, 4 Wire
  • Cooling: Natural Oil Cooled
  • Transformer Oil: New Insulating Transformer Oil ISI 335 Marked
630kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
630kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3630
Features:

  • Rating: 630 kVA, 3 Phase, 4 Wire
  • Output Current: 909 Amps per phase
  • Suitability: Suitable for all power factor loads
  • Cooling: Natural Oil Cooled
  • Class of Insulation: A Class

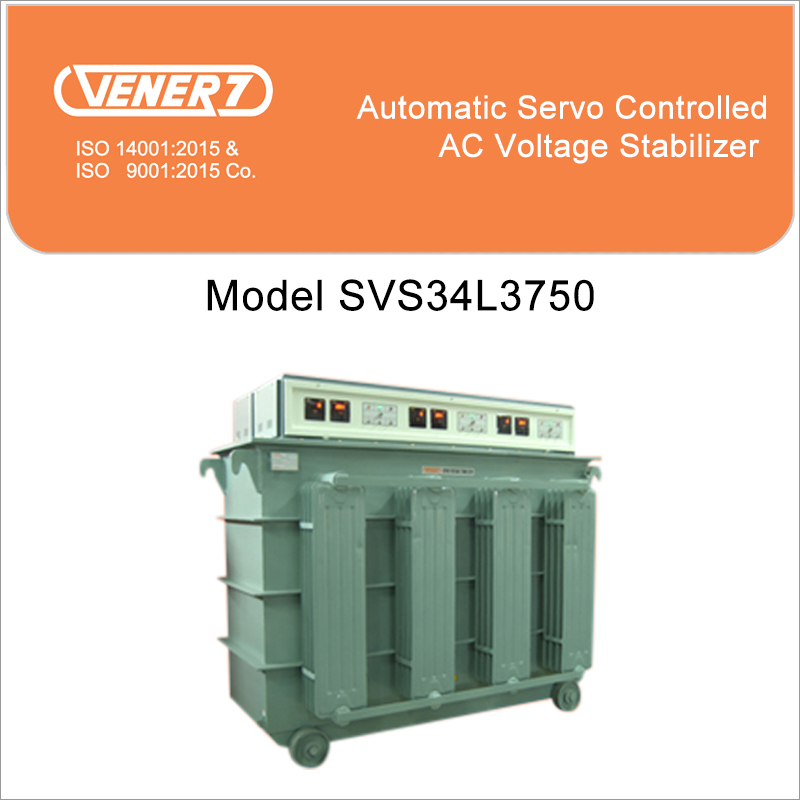

750kVA  Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
750kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3750
Features:

  • Rating: 750 kVA, 3 Phase, 4 Wire
  • Output Current: 1083 Amps per phase
  • No Load Loss: Less than 0.4%
  • Ambient Temperature: -20° C to +50°
  • Efficiency: 98-99%

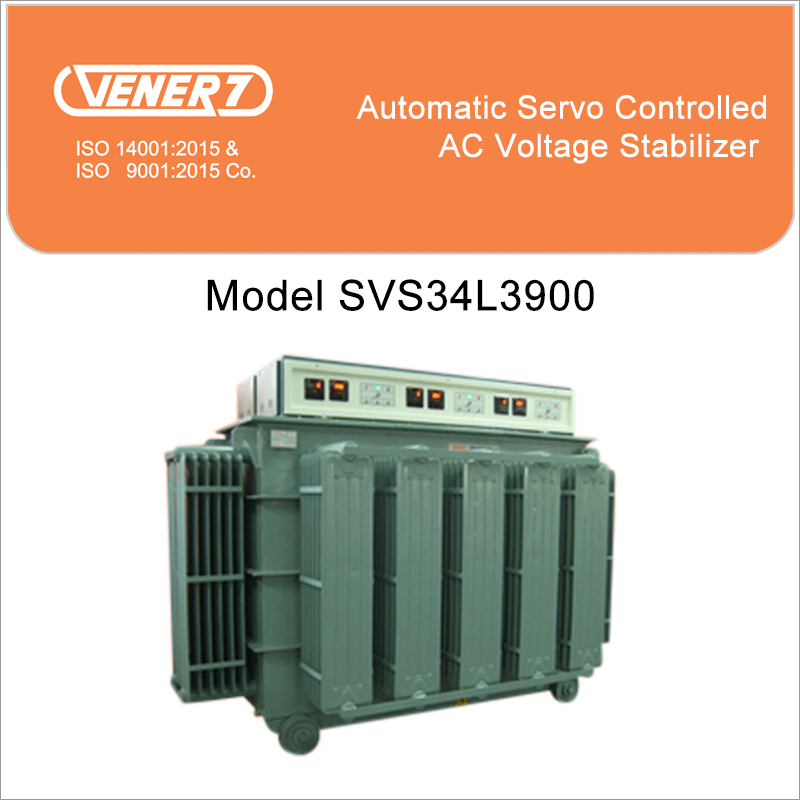

900kVA  Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
900kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L3900
Features:

  • Rating: 900 kVA, 3 Phase, 4 Wire
  • Output Current: 1299 Amps per phase
  • Suitability: Suitable for all power factor loads
  • Cooling: Natural Oil Cooled
  • Class of Insulation: A Class
1000kVA Servo Voltage Stabilizer Oil Cooled
close
1000kVA Servo Voltage Stabilizer Oil Cooled
SVS34L31000
Features:

  • Rating: 1000 kVA, 3 Phase, 4 Wire
  • Output Current: 1444 Amps per phase
  • Additional Facility: Manual Operation
  • Efficiency: 98-99%
  • No Load Loss: Less than 0.4%

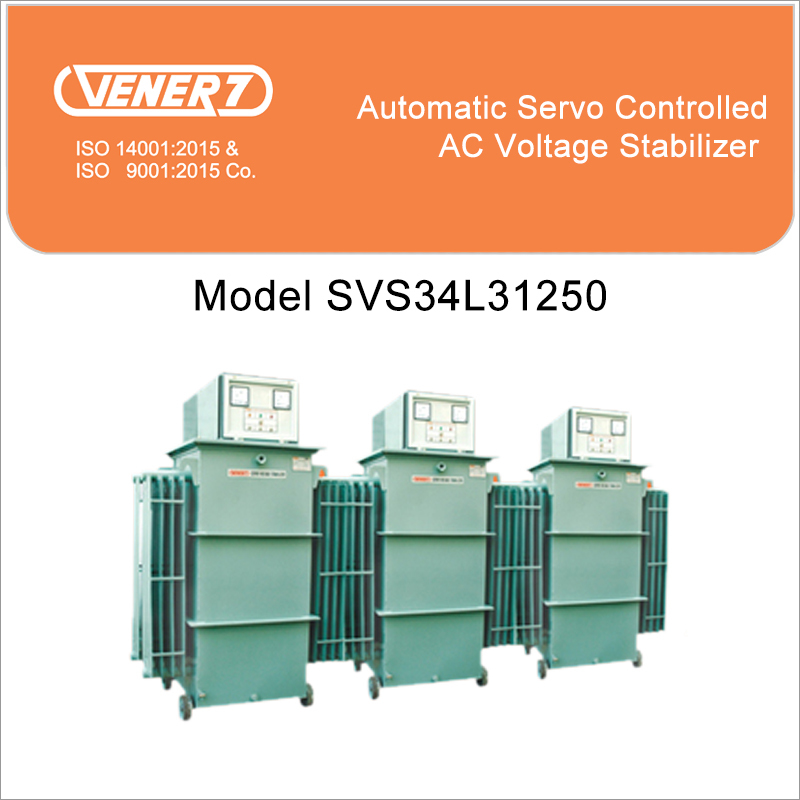

1250kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
1250kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L31250
Features:

  • Rating: 1250 kVA, 3 Phase, 4 Wire
  • Output Current: 1805 Amps per phase
  • Ambient Temperature: -20° C to +50°
  • Size (in mm): L 3730 x D1370 x H 1650
  • Weight: 4766 Kg.

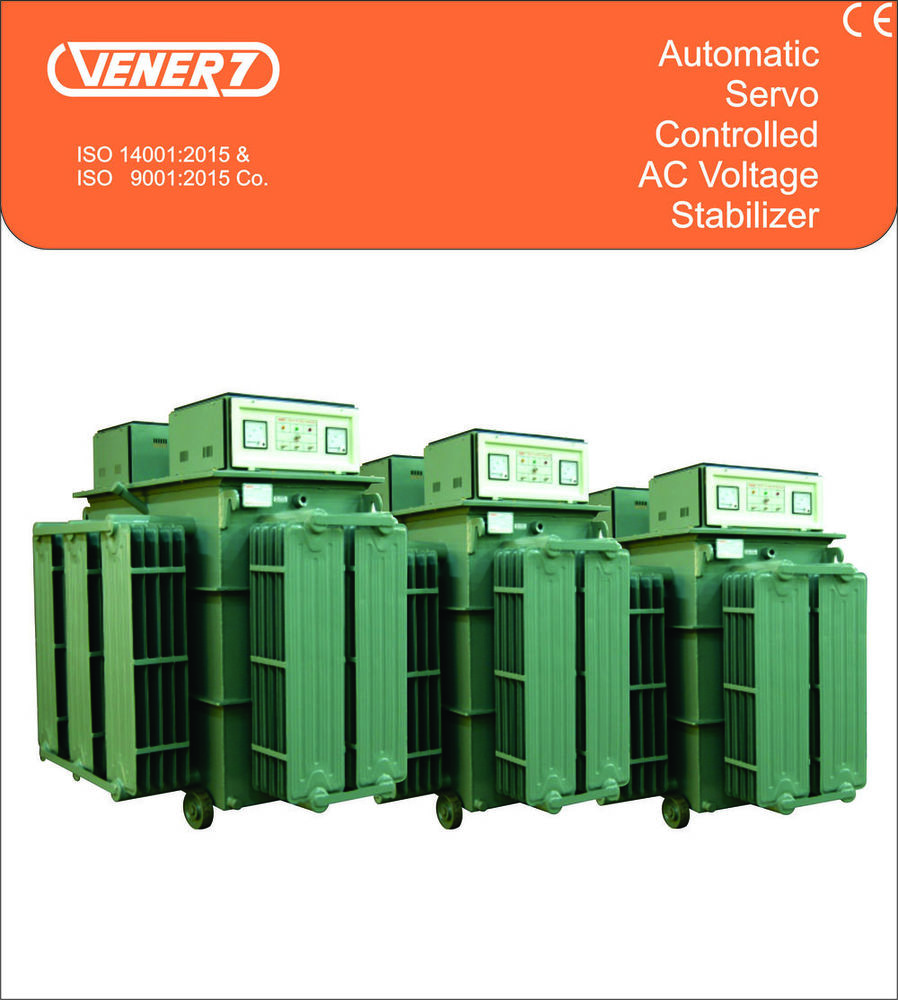

1500kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
1500kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L31500
Features:

  • Rating: 1500 kVA, 3 Phase, 4 Wire
  • Output Current: 2165 Amps per phase
  • Cooling: Natural Oil Cooled
  • Additional Facility: Manual Operation
  • Duty Cycle: Continuous 24x7
2000kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
close
2000kVA Automatic Servo Controlled Oil Cooled Voltage Stabilizer
SVS34L32000
Features:

  • Rating: 2000 kVA, 3 Phase, 4 Wire
  • Output Current: 2887 Amps per phase
  • Degree of Protection: IP-30
  • No Load Loss: Less than 0.4%
  • Breakdown Strength & IR: 1500V AC For 2 Minutes. Greater than 50 Mega Ohms at 500V DC
