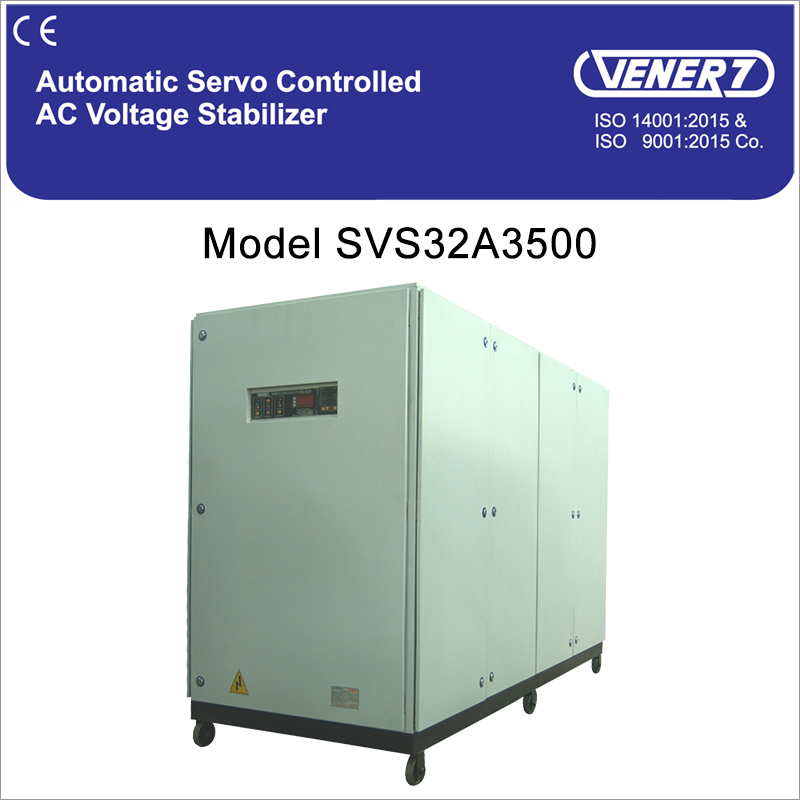

500 kVA Air Cooled Servo Voltage Stabilizer

Product Description

Technical Specifications Model SVS32A3500

• Rating: 500 kVA, 3 Phase in/3 Phase Out, 4 Wire

• Input Voltage Range: 320V to 460V, LL (185-265V L to N 47H263Hz, 4Wire

• Output Voltage: 380/400/415V +/- 1%

• Output Current: 1758/725/994 Amps per phase

• Duty Cyde: Continuous 247

• Wave form Distortion: NIL

• Response Time: Less than 10ms

• Suitability: Suitable for all power factor loads

• Cooling: Natural air Cooled

• Additional Facility: Manual Operation

• Operating Tampe: 0-55 Degree C

• Breakdown Strength & IR: 1500V AC for 2 minutes and 50 Mega Ohms @ 500 VDC

• Class of Insulation: FH

• Installation: Indoor type

• Degree of Protection: IP-30

• No Load Loss: Less than 24%

• Efficiency: 05-00%

• Correction Speed: Faster than 13V per sec

• Input/Output Termination: Copper Bus Bar

• Winding & Wiring Material: Copper EC grade (99.9% Pu

• Technology: Tamidly wound Variable Auto Transformer for linear control and greater efficiency

• Drive: Direct AC drive for fastest voltage correction and durability

• Control: All the three phases controlled individually for better voltage and load management

• Applicable Standard: 15:08:15, 190 9001-2015, 150 14001-2015

• International Marking: CE Conformity EN61558-1:2005+A1:2000

Optional Protections

• Overload Cut-Off and Short Circuit Protection

• Low/High Voltage (out of input range) Alarm and/or Cut-Off

• Phase Missing/Phase Reversal Alarm and/or Cut-Off

Optional Features

• Digital Multifunction Meter

• Manual Bypass & Auto Phase Correction

Salient Features

• Output voltage adjustable +/-6% of set voltage from front panel

• Meters on front panel for easy monitoring of input and output voltage along with limit indicators

• Provision for Auto/Manual control from the front panel
